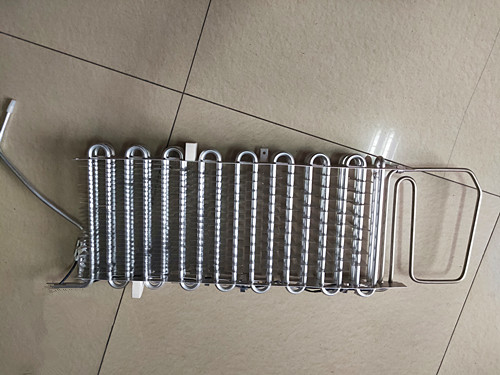

Finned Evaporator Aluminium Material High Efficiency Heat Exchange For Refrigeration System

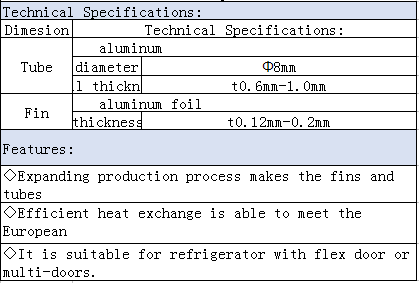

| Technical specifications: Fin evaporator(can be customized according to customer requirements) | ||
|---|---|---|
| Specifications: | Parameters | |
| Tube | Aluminum tube | texture of material.1070 |
| Diameter | Φ6.35、7、7.5、8mm | |
| Wall thickness | 0.6-1mm | |
| Fin | Aluminum foil | texture of material.1100 |
| Thickness | 0.15mm | |
| 0.127mm | ||
| Product Features: | ||
| The internal expansion production process enables full contact between the fins and aluminum tubes, resulting in high heat exchange efficiency | ||
| Exemption from meeting European A+ and A++ standards | ||
| Main purpose: | ||
| Suitable for double door and multi door air-cooled refrigerators | ||
Whatsapp: +86-13861170503
E-mail: shunda@czshunda.com
info@czshunda.com
ADD: Lijia Town, Wujin District, Changzhou City, Jiangsu Province
Mobile: 0086-13861170503
The company was established in 1995, specializing in the production of refrigeration steel tubes，aluminum tubes, evaporators, condensers, and compressor tubes. With 30 years of experience and a professional team, we provide customized solutions to improve your production efficiency and quality.
